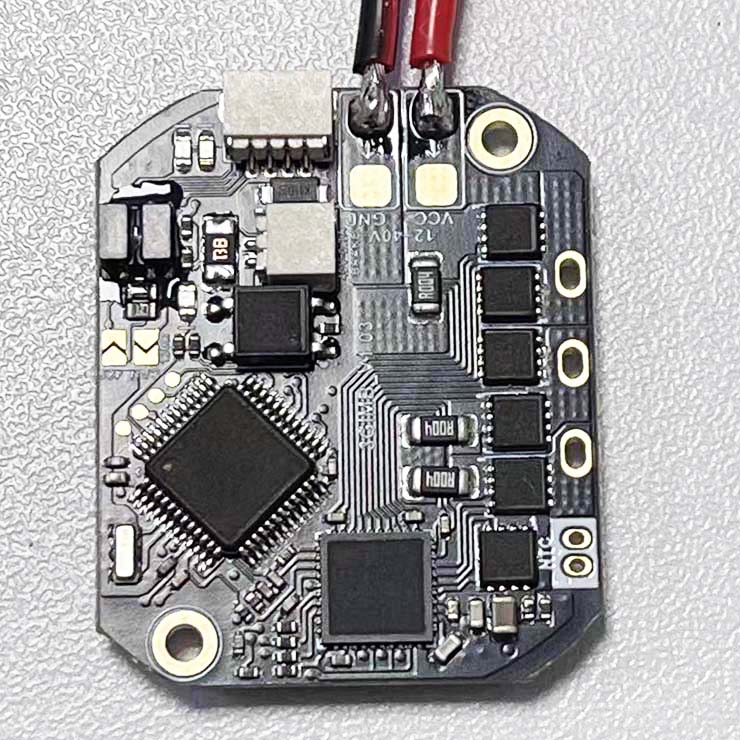

Driver for GIM43 series motors with ZE CAN and RS485

Product Code: 25800432
Availability: 49990

Price: $74.50
Ex Tax: $74.50

Qty: - OR - Add to Wish List
Add to Compare

Description

25800432 Driver for GIM43 series motors with ZE CAN and RS485 Communication

for GIM4305 and GIM4310.


Specifications:

Item	Data and Specification
Rated Voltage	0-41V, support 9S Lipo battery
Rated Current	3A
Max Voltage	41V
Peak Current	6A
Encoder	14 bit
Communication	CAN & RS485
ENCODER2	The second encoder interface is used to set up the absolute position

Driver: ZE RS485 & CAN

1. Support RS485 and CAN simultaneously

2. Support Customized RS485 and Customized CAN protocol.

3. Support Modbus protocol.

4. Support CANOpen protocol.

5. Support MIT CAN protocol.

6. Support Broadcast mode. Master and slaver can receive the command, but the slaver doesn't reply to the master

7. Support Public mode. All slaver receive the command, and reply to the command. Can not use Pubic ID with RS485

Windows PC setting and control program.

RS485 Windows Control sample
